| Product ID | Formula | Purity | Dimension | Quantity | Price in € | Inquiry |
|---|---|---|---|---|---|---|
| 2800ST001 | Ni | 99.99% | Ø 25.4 mm x 0.5 mm | 1 | 36.00 | Inquire |
| 2800ST002 | Ni | 99.99% | Ø 25.4 mm x 3.175 mm | 1 | 94.00 | Inquire |
| 2800ST003 | Ni | 99.99% | Ø 50.8 mm x1 mm | 1 | 99.00 | Inquire |
| 2800ST004 | Ni | 99.99% | Ø 50.8 mm x 3.175 mm | 1 | 128.00 | Inquire |
| 2800ST005 | Ni | 99.99% | Ø 50.8 mm x 6.35 mm | 1 | 168.00 | Inquire |
| 2800ST006 | Ni | 99.99% | Ø 76.2 mm x 3.175 mm | 1 | 185.00 | Inquire |
| 2800ST007 | Ni | 99.99% | Ø 76.2 mm x 6.35 mm | 1 | 246.00 | Inquire |
| 2800ST008 | Ni | 99.99% | Ø 101.6 mm x 3.175 mm | 1 | 260.00 | Inquire |
| 2800ST009 | Ni | 99.99% | Ø 150 mm x 2 mm | 1 | 722.00 | Inquire |
| 2800ST010 | Ni | 99.99% | Ø 152.4 mm x 3.175 mm | 1 | 818.00 | Inquire |
| 2800ST011 | Ni | 99.99% | Ø 152.4 mm x 6.35 mm | 1 | 1,240.00 | Inquire |
| 2800ST012 | Ni | 99.99% | 300 mm x 100 mm x 4 mm | 1 | POR | Inquire |
| 2800ST013 | Ni | 99.99% | 508 mm x 127 mm x 2 mm | 1 | POR | Inquire |
| 2800ST014 | Ni | 99.99% | 508 mm x 127 mm x 2 mm | 1 | POR | Inquire |

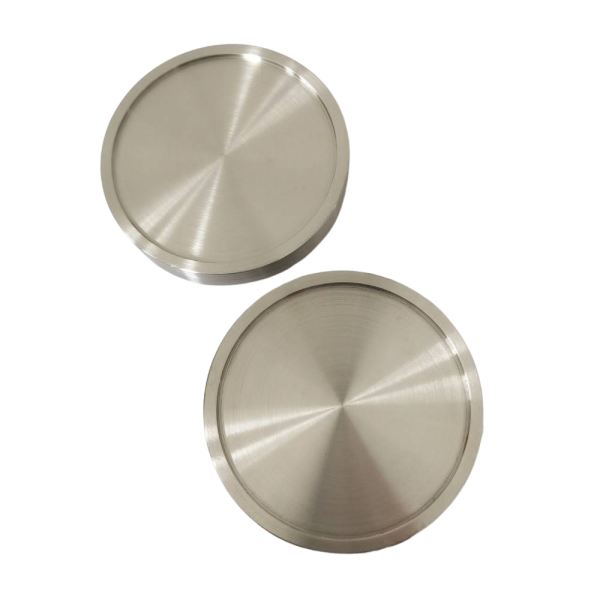

Nickel metal sputtering target is a nickel metal as the main component of the material, the appearance of the silver-grey metallic luster, has a good conductivity and corrosion resistance, is mainly used in physical vapor deposition (PVD) sputtering coating process, can be deposited on the substrate with a protective, decorative or functional nickel thin film, is widely used in electronic, mechanical, decorative and other fields.
VIMATERIAL provides Nickel metal sputtering targets . Our Nickel metal sputtering targets are characterised by excellent compositional homogeneity, ultra-high purity and excellent sputtering stability and we can also provide target binding services. We have a professional R&D team and can accept customisation and experiments, please contact us.
Molecular formula: Ni
Molecular weight: 58.69
Appearance: Silver-grey solid with metallic luster.
Density: about 8.908g/cm³
Melting point: about 1453℃
Boiling point: about 2732°C
Crystal structure: Face-Centred Cubic (FCC) structure, the atoms are located at the apex of the cube and at the centre of each face, this structure gives nickel good ductility and toughness and other physical properties.
Electronic field: Used in surface coating of electronic components to enhance the component’s ability to resist electromagnetic interference and optimise electrical performance to ensure the stable operation of electronic equipment.
Automobile manufacturing field: In automobile production, it can be used to coat engine parts to enhance their resistance to high-temperature corrosion and abrasion, and prolong the service life of key automobile parts.
Aerospace field: used in aerospace equipment surface protection, through the deposition of nickel film effectively resist the erosion of the complex environment in space, to ensure the reliability of the aircraft structure materials.
Decorative field: In the decorative industry, nickel film can be deposited on the surface of all kinds of jewellery and objects, giving them a bright, beautiful and durable metal texture and protective layer.
Mechanical manufacturing field: nickel sputtering on mechanical parts to improve the surface hardness and wear resistance of the parts, reducing the loss and failure of the parts in mechanical operation.
Our products are implemented the most stringent quality management system, incoming materials, process, final inspection, factory inspection have strict inspection standards, for the unqualified processing will use strict isolation measures to avoid the flow of non-conforming products into the next process, according to customer requirements will provide customers with samples for customers to re-inspection.
Nickel metal sputtering targets are packed in double vacuum bags and cartons.
Nickel metal sputtering targets should be stored in a dry, well-ventilated environment with stable temperature, avoiding contact with corrosive substances such as acid and alkali, preventing moisture and oxidation, and at the same time avoiding physical collision and extrusion, in order to maintain its good performance and integrity.
VI HALBLEITERMATERIAL GmbH (VIMATERIAL) employs a stringent quality assurance system to ensure the reliability of our product quality. Strict quality control is implemented throughout the entire production chain, and for defective products, we strictly enforce the principle of rework and redo. Each batch is released only after passing detailed specification tests.
Every batch of our materials is independently tested, and, if necessary, we send samples to certified companies for testing. We provide these documents and analysis certificates with the shipment to certify that our products meet the required standards.
