| Product ID | Formula | Purity | Dimension | Quantity | Price in € | Inquiry |
|---|---|---|---|---|---|---|
| 270801ST001 | CoO | 99.9% | Ø 152.4 mm x 6.35 mm | 1 | POR | Inquire |
| 270801ST002 | CoO | 99.95% | Ø 25.4 mm x 6.35 mm | 1 | POR | Inquire |
| 270801ST003 | CoO | 99.95% | Ø 50.8 mm x 3.175 mm | 1 | POR | Inquire |
| 270801ST004 | CoO | 99.95% | Ø 76.2 mm x 3.175 mm | 1 | POR | Inquire |
| 270801ST005 | CoO | 99.95% | Ø 101.6 mm x 6.35 mm | 1 | POR | Inquire |
| 270801ST006 | CoO | 99.95% | Ø 203.2 mm x 3.175 mm | 1 | POR | Inquire |

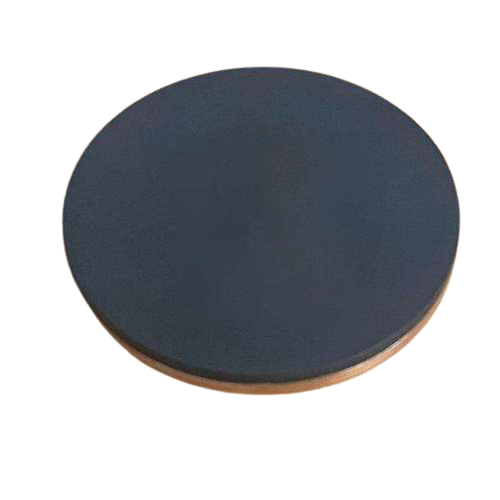

Cobalt Monoxide sputtering target is a material mainly composed of Cobalt Oxide, usually black or grey-black in appearance, with good chemical stability and a certain degree of electrical conductivity, mainly used in the sputtering coating process, able to deposit on the substrate cobalt oxide thin films that can be used in the field of electronic, catalytic, and magnetic materials and so on.
VIMATERIAL offers a wide range of Cobalt Monoxide sputtering targets . Our Cobalt Monoxide sputtering targets are characterised by excellent compositional homogeneity, ultra-high purity and excellent sputtering stability, and we can also provide target binding services. We have a professional R&D team and can accept customisation and experiments, please contact us.
Molecular formula: CoO
Molecular weight: 74.93
Appearance: Black or grey-black solid with metallic luster.
Density: about 6.45g/cm³.
Melting point: about 1935℃
Boiling point: about 3800℃
Crystal structure: cubic crystal system, cobalt ions are located in the apex and face centre of the cubic crystal cell, oxygen ions are located in the body centre of the crystal cell.
Electronics: Cobalt Monoxide sputtering targets can be used in the manufacture of electronic devices to deposit thin films with specific electrical properties, which are used to regulate the conductive properties and stability of electronic components.
Catalysis: In catalytic reaction systems, thin films made from this target can be used as catalysts or catalyst carriers to effectively increase the rate and selectivity of chemical reactions.
Magnetic materials: used in the preparation of magnetic materials, the deposited film can give the material unique magnetic properties, help the development of magnetic storage and sensing technology.
Ceramic materials field: can be coated on the surface of ceramics to enhance the hardness, colour and corrosion resistance of ceramics, expanding the application of ceramics in decorative and functional materials.
Our products are implemented the most stringent quality management system, incoming materials, process, final inspection, factory inspection have strict inspection standards, for the unqualified processing will use strict isolation measures to avoid the flow of non-conforming products into the next process, according to customer requirements will provide customers with samples for customers to re-inspection.
Cobalt Monoxide sputtering targets are packed in double vacuum bags and cartons.
Cobalt Monoxide sputtering targets should be stored in a dry, cool and well-ventilated environment, avoiding contact with acid, alkali and other corrosive substances, preventing moisture and oxidation, and at the same time pay attention to avoiding physical collision and extrusion, to ensure that the performance and structure of the target material will not be damaged.
VI HALBLEITERMATERIAL GmbH (VIMATERIAL) employs a stringent quality assurance system to ensure the reliability of our product quality. Strict quality control is implemented throughout the entire production chain, and for defective products, we strictly enforce the principle of rework and redo. Each batch is released only after passing detailed specification tests.
Every batch of our materials is independently tested, and, if necessary, we send samples to certified companies for testing. We provide these documents and analysis certificates with the shipment to certify that our products meet the required standards.
