| Product ID | Formula | Purity | Dimension | Quantity | Price in € | Inquiry |
|---|---|---|---|---|---|---|
| 2400ST001 | Cr | 99.95% | Ø 25.4 mm x 3.175 mm | 1 | 135.00 | Inquire |
| 2400ST002 | Cr | 99.99% | Ø 25.4 mm x 3.175 mm | 1 | 200.00 | Inquire |
| 2400ST003 | Cr | 99.99% | Ø 25.4 mm x 6.35 mm | 1 | 220.00 | Inquire |
| 2400ST004 | Cr | 99.95% | Ø 50.8 mm x 3.175 mm | 1 | 165.00 | Inquire |
| 2400ST005 | Cr | 99.99% | Ø 50.8 mm x 3.175 mm | 1 | 247.00 | Inquire |
| 2400ST006 | Cr | 99.99% | Ø 50.8 mm x 6.35 mm | 1 | 304.00 | Inquire |
| 2400ST007 | Cr | 99.95% | Ø 54 mm x 0.5 mm | 1 | 275.00 | Inquire |
| 2400ST008 | Cr | 99.95% | Ø 57 mm x 1.5 mm | 1 | 251.00 | Inquire |
| 2400ST009 | Cr | 99.95% | Ø 76.2 mm x 3.175 mm | 1 | 196.00 | Inquire |
| 2400ST010 | Cr | 99.99% | Ø 76.2 mm x 3.175 mm | 1 | 427.00 | Inquire |
| 2400ST011 | Cr | 99.95% | Ø 101.6 mm x 3.175 mm | 1 | 305.00 | Inquire |
| 2400ST012 | Cr | 99.99% | Ø 101.6 mm x 3.175 mm | 1 | 465.00 | Inquire |
| 2400ST013 | Cr | 99.95% | Ø 101.6 mm x 6.35 mm | 1 | 340.00 | Inquire |
| 2400ST014 | Cr | 99.99% | Ø 101.6 mm x 6.35 mm | 1 | 617.00 | Inquire |
| 2400ST015 | Cr | 99.95% | Ø 127 mm x 3.175 mm | 1 | 363.00 | Inquire |
| 2400ST016 | Cr | 99.99% | Ø 127 mm x 6.35 mm | 1 | 738.00 | Inquire |
| 2400ST017 | Cr | 99.95% | Ø 152.4 mm x 6.35 mm | 1 | 494.00 | Inquire |
| 2400ST018 | Cr | 99.99% | Ø 152.4 mm x 6.35 mm | 1 | 923.00 | Inquire |
| 2400ST019 | Cr | 99.5% | 345 mm x 145 mm x 8mm | 1 | POR | Inquire |
| 2400ST020 | Cr | 99.5% | 690 mm x 145 mm x 8mm | 1 | POR | Inquire |
| 2400ST021 | Cr | 99.5% | 300 mm x 100 mm x 8mm | 1 | POR | Inquire |
| 2400ST022 | Cr | 99.8% | 400 mm x 200 mm x 10mm | 1 | POR | Inquire |

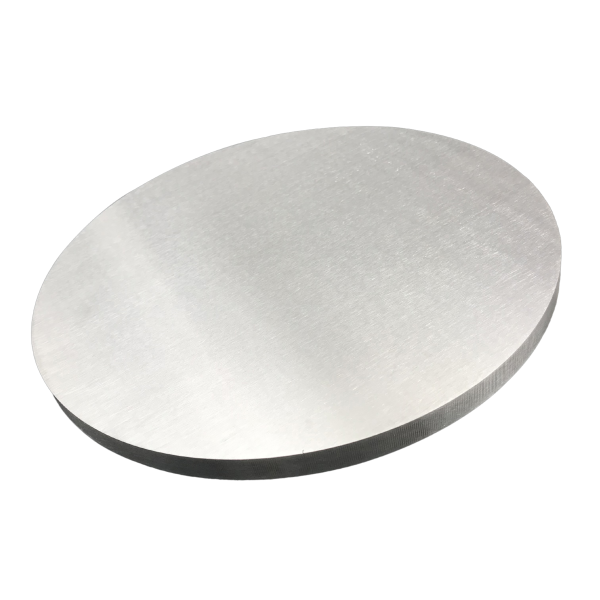

Chromium sputtering target is a target material used as a source of chromium atoms in the Physical Vapour Deposition (PVD) technique to deposit chromium atoms onto the surface of the substrate through the sputtering process for the preparation of chromium-plated thin films.
VIMATERIAL supplies Chromium sputtering targets in a wide range of purities and sizes. Our Chromium sputtering targets are characterised by high purity, homogeneous composition, fine grain size, high density, high hardness, good thermal stability, and strong bonding to the substrate. We have been devoted to the research of inorganic chemical materials for many years, and also provide the binding service of sputtering targets. We have an experienced and professional team to accept customisation and experiments, please contact us if you need.
Molecular formula: Cr
Molecular weight: 51.9961
Appearance: Generally steel grey metal target
Density: 7.22 g/cm³
Melting point: 1857°C
Boiling point: 2672°C
Crystal structure: Body-centred cubic lattice
Electronic industry: Chromium sputtering target is used in semiconductor manufacturing as a barrier material for metal interconnection layer, which can prevent the diffusion of copper and other metal atoms and ensure the stable and reliable performance of electronic devices.
Optical field: In optical lens coating, Chromium sputtering target can be used to prepare reflective film, which can effectively improve the reflectivity of the lens and enhance the light control ability of optical instruments.
Automobile manufacturing field: used in automobile parts surface coating, such as chrome-plated automobile wheels are not only beautiful, but also can enhance the wheel’s abrasion resistance and corrosion resistance, prolonging its service life.
Photovoltaic industry: In the manufacture of photovoltaic cells, Chromium sputtering target can be used for the preparation of electrode or back reflection layer, which helps to improve the photoelectric conversion efficiency of the cell and promote the effective use of light energy.
Each batch of products follow strict quality control principles, all-round to ensure that each batch of materials from raw material procurement, processing, finished products out of the warehouse have advanced instruments, strict inspection standards, perfect inspection records, to ensure that the quality of the product can be controlled and product traceability, each batch of products are accompanied by MSDS, COA, TDS, PSD, XRD reports, etc., and each batch of products will be provided with samples to the customer, also We support customers to request third party inspection organisations to inspect the products. We will provide customers with samples of each batch of products, and also support customers to request third-party inspection organisations to inspect the products.
Chromium sputtering target is packed in double vacuum bags and then packed in cartons.
Chromium sputtering target should be stored in a dry, well-ventilated, non-corrosive gas environment, to avoid moisture, oxidation and physical damage, and away from high temperature and ignition sources, and need to be placed in accordance with the prescribed manner to prevent deformation.
VI HALBLEITERMATERIAL GmbH (VIMATERIAL) employs a stringent quality assurance system to ensure the reliability of our product quality. Strict quality control is implemented throughout the entire production chain, and for defective products, we strictly enforce the principle of rework and redo. Each batch is released only after passing detailed specification tests.
Every batch of our materials is independently tested, and, if necessary, we send samples to certified companies for testing. We provide these documents and analysis certificates with the shipment to certify that our products meet the required standards.
Contact our team of experts today and let us help you with your business!
